OVerhead Crane Systems

Representing the largest product and solution breadth in the industry, ReSolve partners with Gorbel to solve your overhead lifting needs. Crane systems come in various styles, types, and capacities.  Which solution is right for you depends on your operation’s specific requirements as well as what your facility can support.  Crane systems improve ergonomics keeping your personnel safe and injury free, increase productivity making your company more profitable, and expands your site’s overall material handling capabilities while reducing fork lift dependance.

Already have a crane and looking for a new hoist?

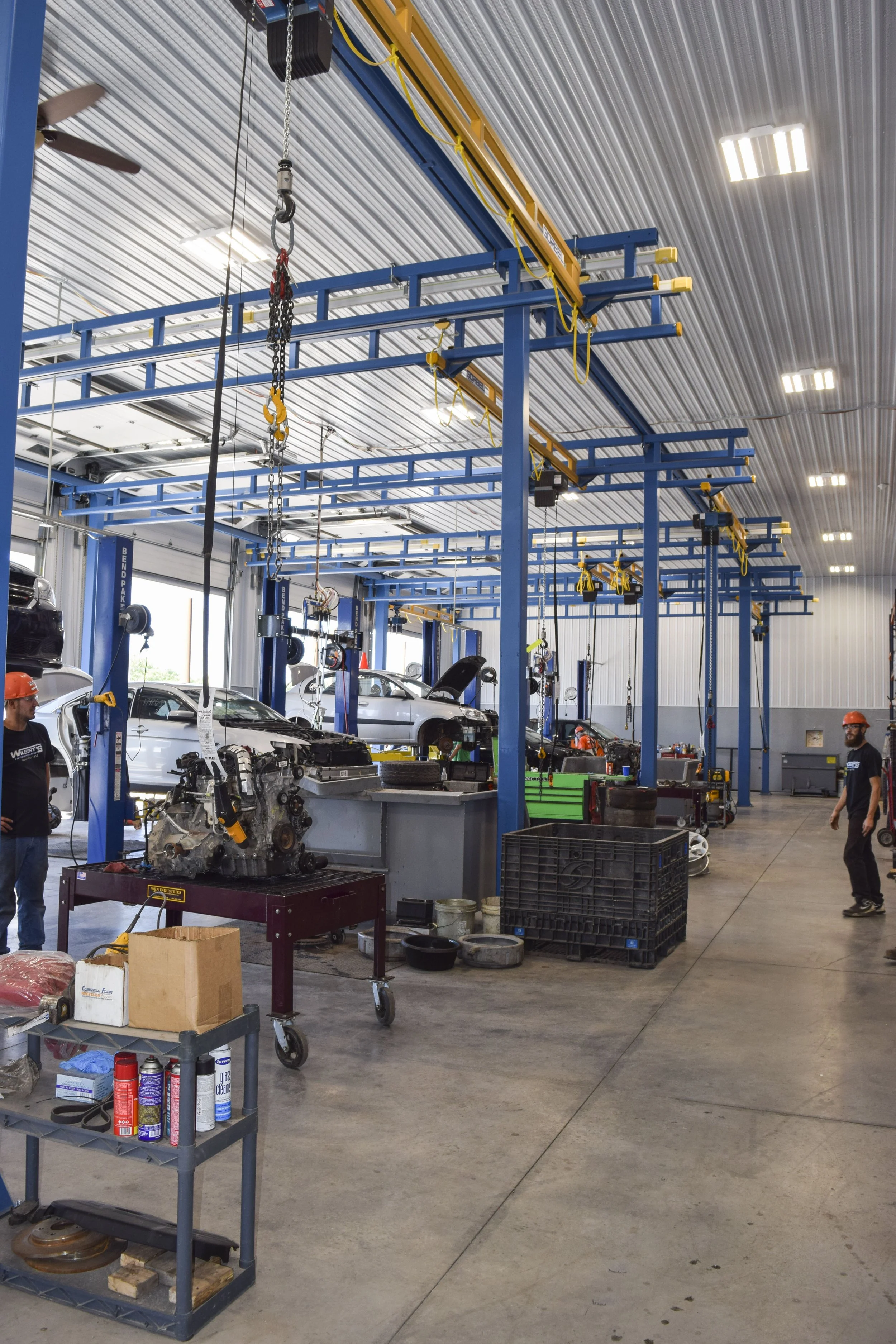

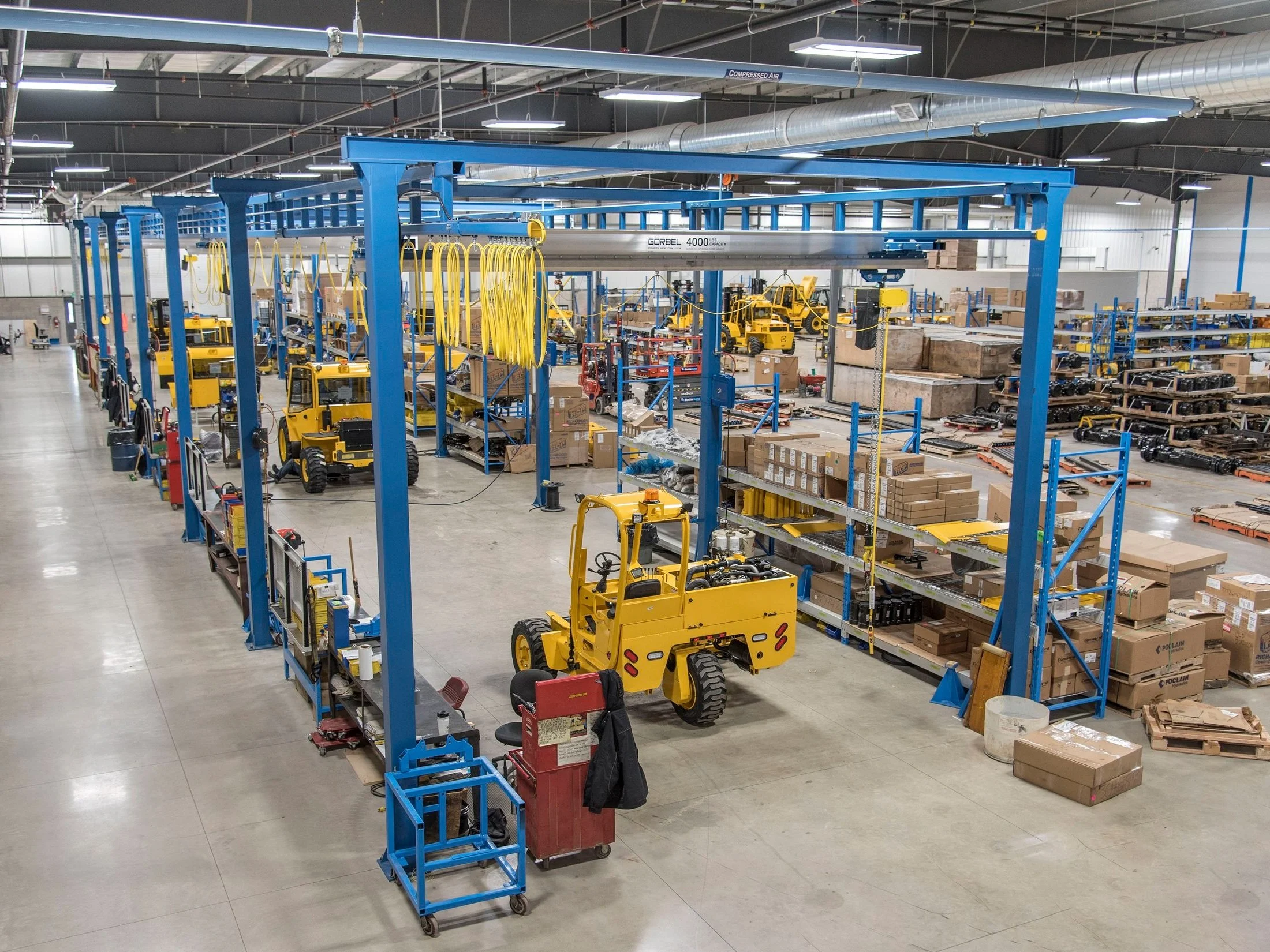

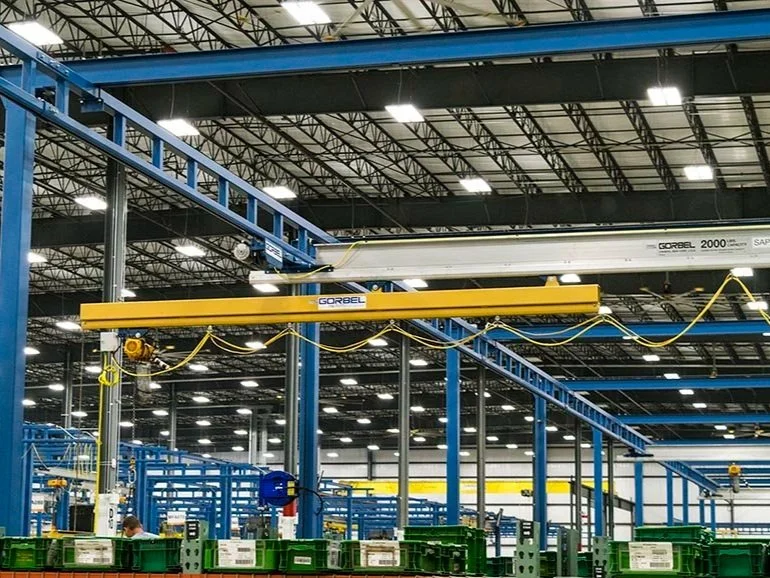

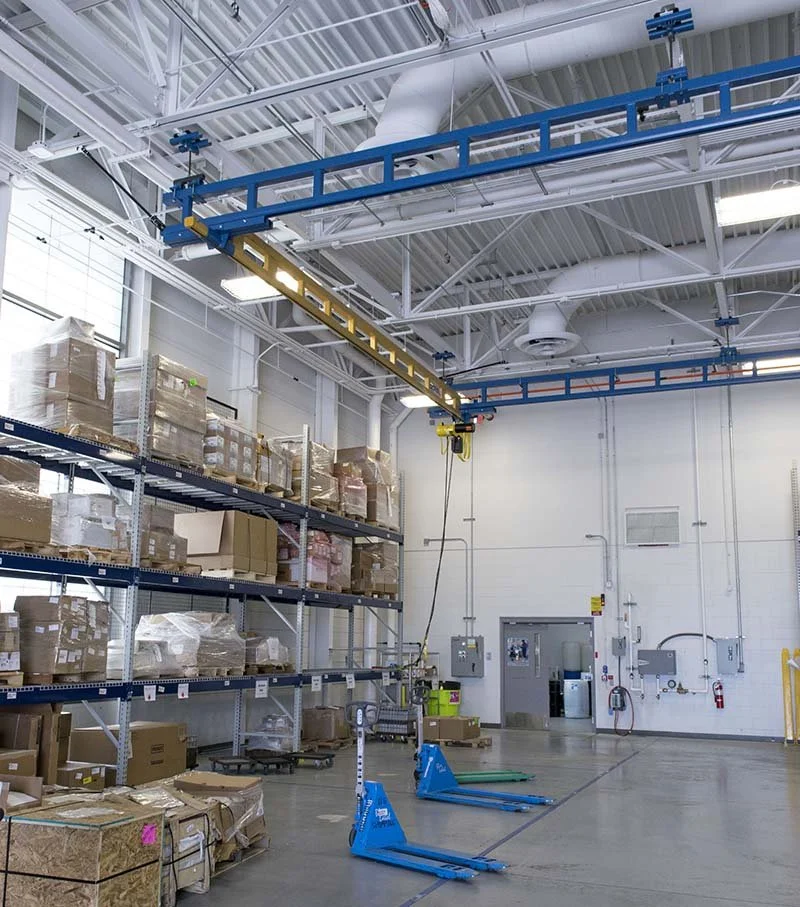

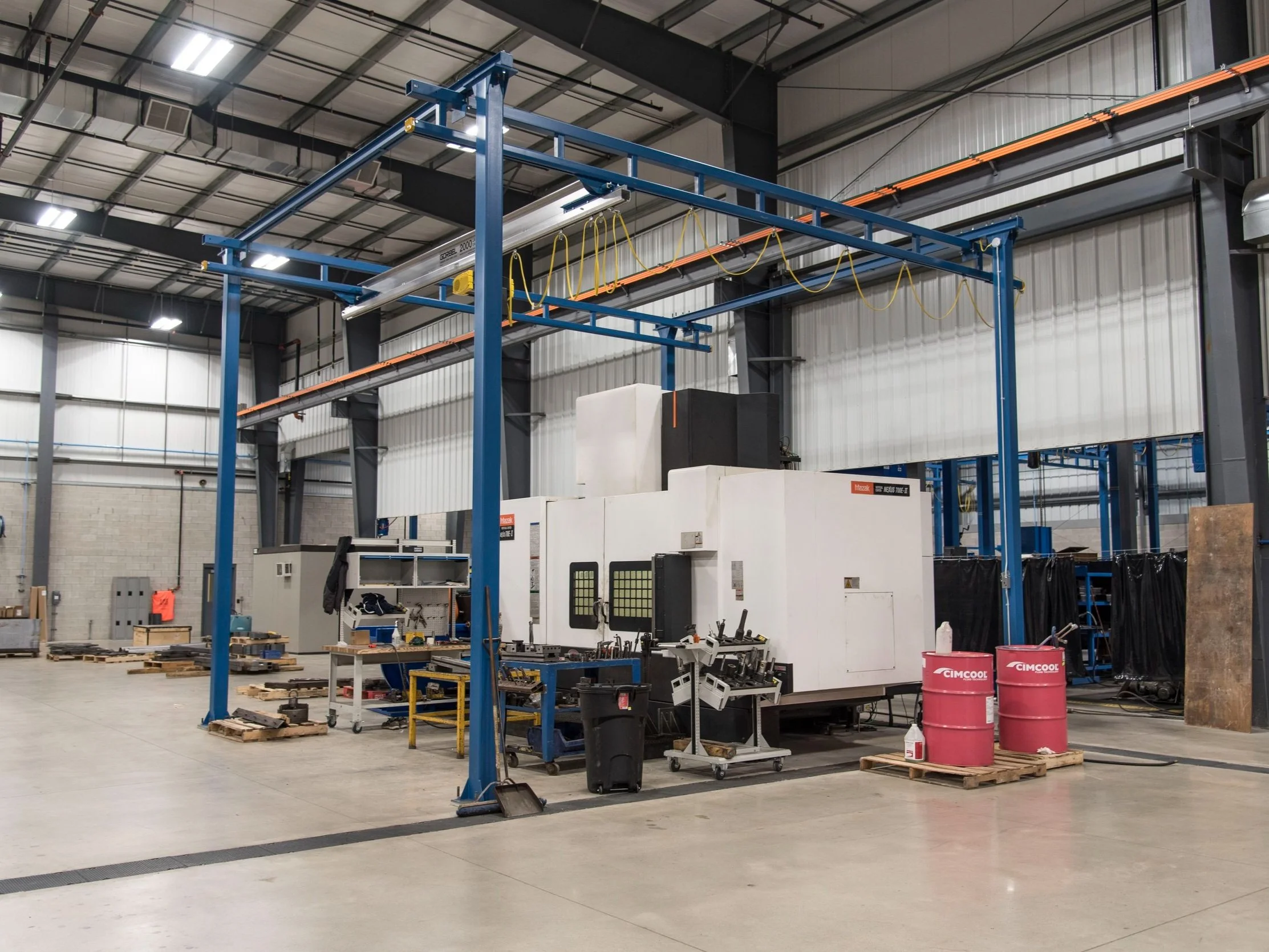

WORKSTATION BRIDGE CRANES

  • The enclosed track design dramatically improves operational ease compared to conventional I-beam systems. A ‘Productivity Factor’ of 100:1 is maintained with all our enclosed track solutions - a 2000lb load only requires 20 lb of force by the operator to move.

  • Freestanding, ceiling supported, multiple bridges, mixed capacities, motorized, cantilever sections, monorail design

  • Rectangular, square, or linear area of coverage, bridge capacity between 150 lb and 2 tons, and a bridge spans up to 34ft

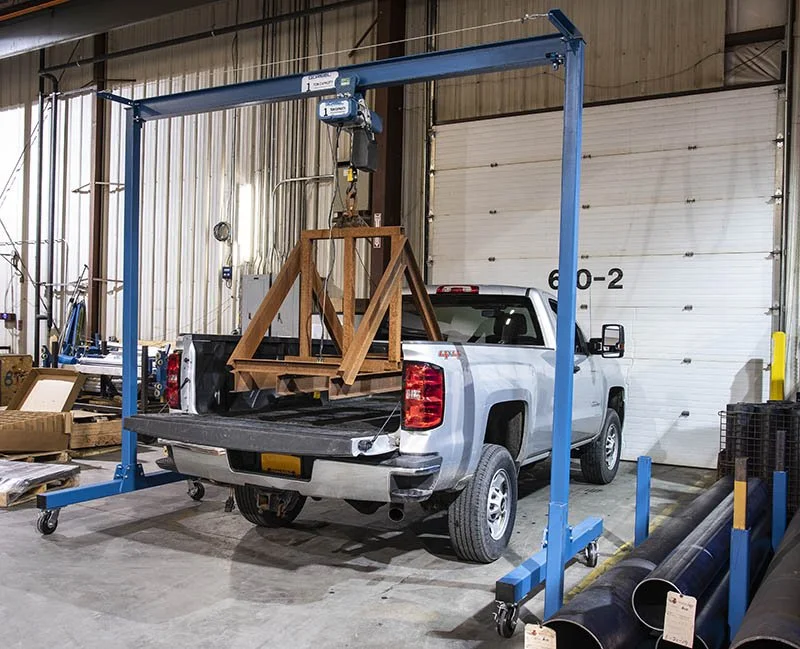

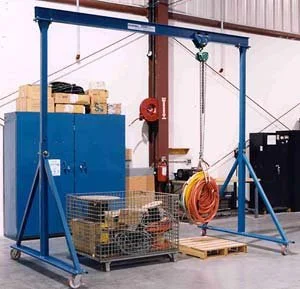

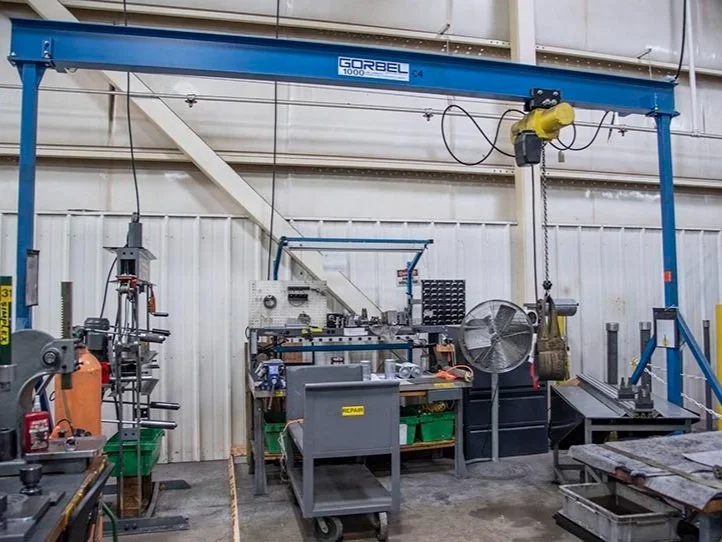

GANTRY CRANES

  • A gantry crane is a highly economical lifting solution that provides utility at multiple locations around your facility.  Systems can be designed from 1000 lb up to 5 tons, with spans up to 30 ft, and heights up to 20 ft.

  • Fixed Height, Adjustable Height, Collapsible Aluminum, taglines to manage power cabling, casters vs steel track

  • Infrequent lifting, mobility, outdoor and indoor lifts, when permanent structures are not viable in your area of use

ENCLOSED TRACK JIB CRANES

  • Jib cranes provide work-cell-focused lifting solutions that help to keep your operation area free of equipment columns.  The circular area of coverage and shorter heights efficiently move your load from one work cell to another, and can operate beneath a larger facility crane.  Capacities available up to 2000 lb, spans to 20 ft, and heights to 12 ft.

  • Free standing with 360º coverage, wall mounted cantilever or wall mounted tie rod with 200º coverage, light duty tool solutions support 50 lb to 150 lb

  • Circular coverage needs, lighter duty movement within a work-cell or from one cell to the next, loading/unloading of CNCs or other production equipment, reduce operator effort with overhead tooling support

Heavy capacity bridge cranes

  • The high carbon steel track and underhung style of these high weight capacity systems far exceed traditional I-Beam Bridges in longevity, consistency, uniform load distribution, cost of ownership, and maintenance considerations. Capacities available from 2 to 40 tons, spans to 60 ft, and heights up to 20 ft.

  • Freestanding, ceiling hung, curved track monorails, dual girder, nested trolley

  • Main facility crane, high weight capacity lifting, supporting loading docks, equipment maintenance, semi truck servicing, and equipment assembly

I-BEAM JIB CRANES

  • Maximize productivity for higher capacity lifting needs where space is limited. Gorbel’s stringent design requirements make their I-Beam Jibs superior over others, with a broad offering of foundation-less options and significantly less deflection over the span.  This results in less force required to move your load along a stable I-Beam. Capacities available up to 10,000 lb, spans to 30ft, and heights up to 20ft

  • Motorization, free standing, wall mounted tie-rod, wall cantilever, mast type, tag lines

  • Capacity requirements exceed that of the enclosed track, circular area of coverage needs, movement of large equipment, heavy duty manufacturing process flow

ARTICULATING CRANES

  • This crane offers highly versatile positioning capability, offering ease of movement where traditional jibs fall short. The boom plus arm design offers functionality for reaching around corners, into machines, into obstructed areas, and around building columns. Capacities available up to 2000 lb, spans to 20 ft, and heights up to 12 ft.

  • Light duty 150 lb Pivot Pro for vacuum lifting applications, foundation-less designs

  • Circular area of coverage, area impedances to work around, load movement and positioning near the mast, palletizing of boxes

Intelligent Lifting Solutions

These lifting solutions combine multiple functionalities to create highly intelligent systems for ultimate productivity.

G-Force

  • Advanced electrical control with expanded Input/Output points, handle accessories custom to your operation, soft touch handles

  • Maximize productivity, precision load handling and movement, traditional hoist jogging is inadequate, handling of high cost or delicate products, assemblies, fixtures.

The new era of intuitive and intelligent lifting devices is here.  This highly responsive and ergonomic focused lifting solution offers handling capabilities beyond traditional electric chain hoists, but without the constraints and costs of a robotic system.  See manufacturing productivity increases of 70% and precision increase by 51% through effortless operator manipulation of the lead. Compatible with various crane types.  Capacities available from 165 lb to 1320 lb, and speeds of 25 ft/min to 200 ft/min. You’ll need to see this technology in action to fully understand its capability! Check out the video below.

Easy arm

  • Free standing, underhung from workstation crane, advanced electrical control with expanded I/O, handle accessories custom to your operation, soft touch handles

  • If productivity is king, circular area of coverage, turn key solution for easy implementation

A fully integrated package combining the patented G-Force with an Articulating Jib Crane.  Upgrade your site’s handling capabilities while maximizing your team’s productivity and keeping them injury free.  Capacity of 165 ls, spans up to 10 ft, speeds up to 180 ft/min.

Hoists

ReSolve’s goal is to provide a complete, turn-key, overhead lifting solution that meets your application specific requirements. The Gorbel GS Hoist is a highly competitive solution, with a compact body, low headroom design. If you’re looking for a reliable hoist with a short lead time, backed with an industry leading brand name, look no further than the GS Hoist series.

Capacity: Ranging from 250lbs up to 10,000lbs (⅛ Ton to 5 Ton)

Mounting: Hook, or Lug; enclosed track or S & W beam manual or motorized trolleys.

Hoists are utilized within countless industry types, environments, capacity needs, and applications - ReSolve strives to support our customer’s with the best fit equipment for their project. Reach out to a solution consultant today to discuss your application and get a quote.
